Author Topic: Boston Consolidated TRACON  (Read 32462 times)

Offline Lynch_Christopher

  • Jr. Member
  • **
  • Posts: 62
Boston Consolidated TRACON
« on: September 05, 2007, 11:02:35 PM »
Hey,
  I was wondering if anyone had a map of the Boston Consolidated TRACON sectors along with all the frequencies that they use. Manchester Area and Boston Area.

thanks



Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #1 on: September 11, 2007, 10:36:13 PM »
Hey Chris,

I have the info. Give me a few days and I'll put it up.


Offline sticky

  • Newbie
  • *
  • Posts: 9
Re: Boston Consolidated TRACON
« Reply #2 on: September 18, 2007, 12:59:08 AM »
I'd like to see this too..

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #3 on: September 28, 2007, 05:58:53 PM »
Apologies guys. I completely forgot about this until now. Anyway, here's the info:

BOS AREA
Rockport - 118.25
Plymouth - 120.6
Final 1 - 126.5
Final 2 - 119.65
Initial Departure - 133.0
Lincoln - 127.2
Bedford - 124.4
Lynch - 124.1

MHT AREA
West - 134.75
East - 125.05
Tommy - 127.35
Fitzy - 124.9
Low - 125.82



Some brief info:

  • Lincoln is always combined at Initial Departure, and is only split up for training purposes.
  • Lynch is almost always combined at Plymouth.
  • During the evening or in reduced traffic, Bedford is combined at Rockport, Final 2 at Final 1, and Plymouth and Lynch at Initial Departure.
  • During the mid shift, all the positions are combined at Initial Departure on 133.0.

  • The MHT area is usually run with Low combined at East, Tommy at Fitzy, and West by itself.
« Last Edit: September 28, 2007, 06:48:14 PM by Michael Roche »

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #4 on: September 28, 2007, 06:33:02 PM »

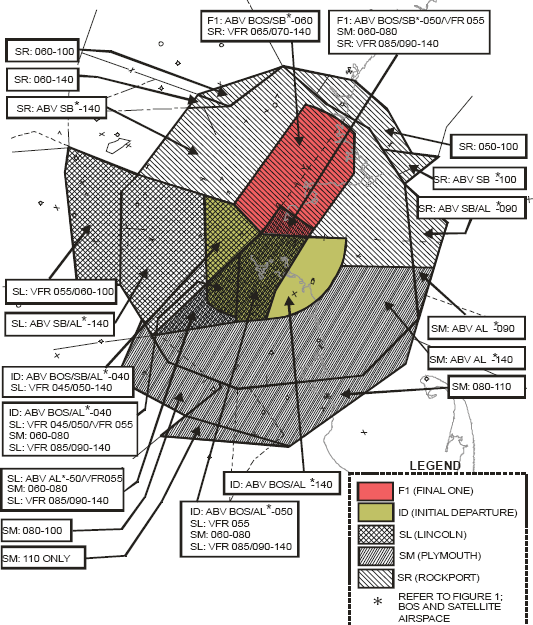

Land: 4R/L
Depart: 9
« Last Edit: September 28, 2007, 06:36:47 PM by Michael Roche »

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #5 on: September 28, 2007, 06:35:48 PM »

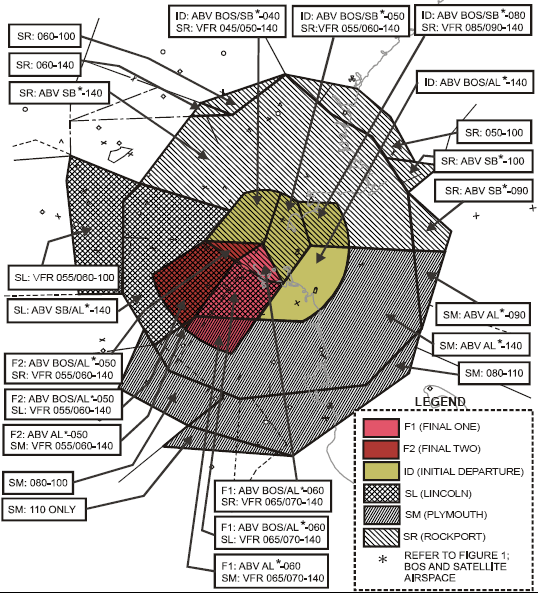

Land: 22L/27
Depart: 22R
« Last Edit: September 28, 2007, 06:37:57 PM by Michael Roche »

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #6 on: September 28, 2007, 06:38:55 PM »

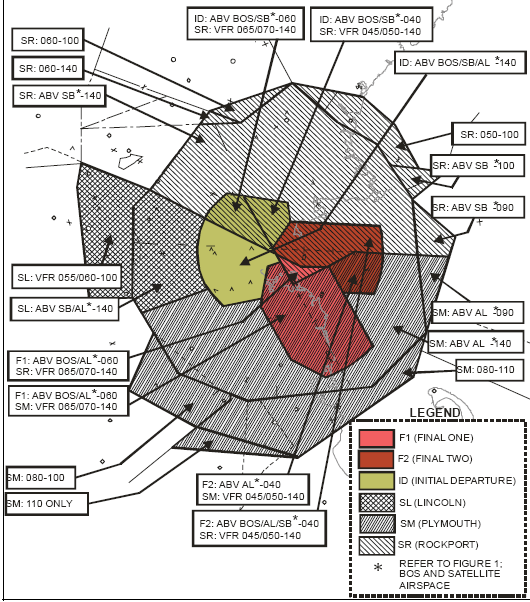

Land: 27/32
Depart: 33L

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #7 on: September 28, 2007, 06:40:05 PM »

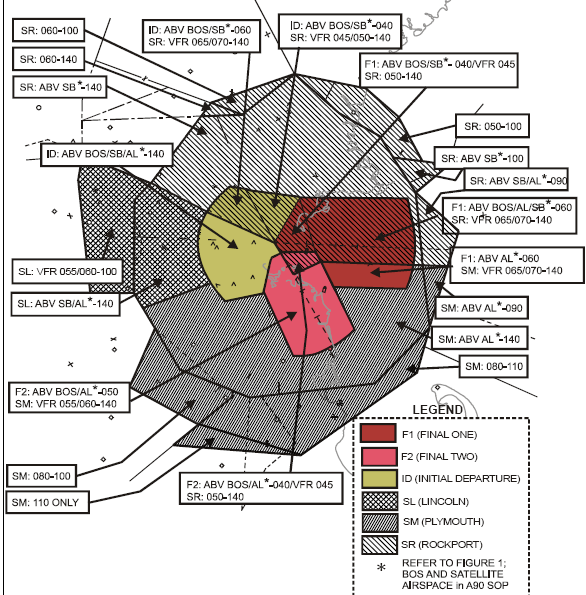

Land: 33L
Depart: 27

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #8 on: September 28, 2007, 06:41:09 PM »
Land: 22L
Depart: 15R/22R

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #9 on: September 28, 2007, 06:42:05 PM »

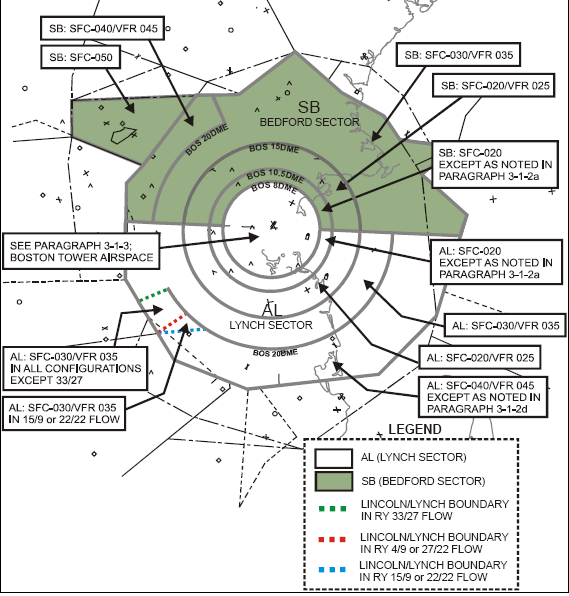

Bedford and Lynch sectors - BOS Area Satellite sectors

Offline Michael Roche

  • Newbie
  • *
  • Posts: 21
Re: Boston Consolidated TRACON
« Reply #10 on: September 28, 2007, 06:43:31 PM »

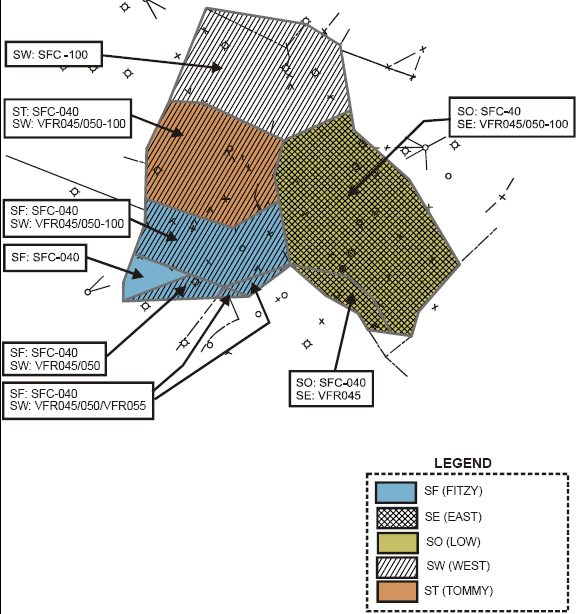

And the MHT Area



These are just the most commonly-used configs in A90. There are actually 10 possible airspace configurations. If you want anything else, just ask.

Enjoy!

RE

Offline Lynch_Christopher

  • Jr. Member
  • **
  • Posts: 62
Re: Boston Consolidated TRACON
« Reply #11 on: October 06, 2007, 06:27:48 PM »
Thank you so much for the information. :-)

Offline ramrod215

  • Newbie
  • *
  • Posts: 1
Re: Boston Consolidated TRACON
« Reply #12 on: January 10, 2009, 12:02:24 AM »
Thank you for the uploads is there a way you can email me all the maps in a pack. I would like to get a jump start on familiarizing myself with the airspace. I currently have a tentative offer letter to work at A90. Just waiting for all the check to go through and get a firm offer letter. This would would help pass sometime while i am waiting thank you so much in advance if it is possible. I know i am going to spend alot of time studying this in training but checking it out now couldn't hurt. Email is hobsocc7@gmail.com
